Description

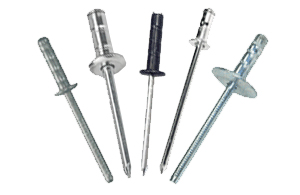

Blind rivet was originated from the word "Blind Job". A blind rivet is a rivet which is workable from one side. Two parts, the body and the mandrel, are assembled into one, using different materials according to purposes. Blind rivets are useful for designs of narrow and enclosed areas.
Install Procedure

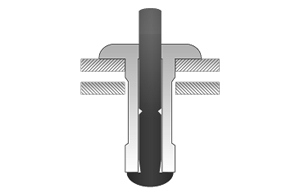

Insert the rivet into the base metal.

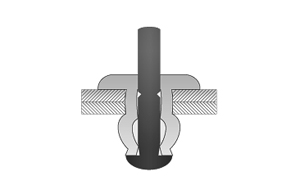

The body starts forming as the tool pulls the mandrel.

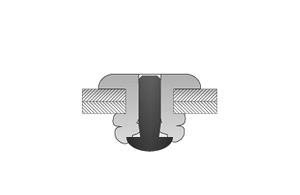

The body gets settled completed into the base metal, and the mandrel gets cut off leaving only the part inside the body.
Characteristics
Easy to work : Inexperienced workers can use easily.
Easy to inspect : Can check with eyes.
Unrestricted material selection : Aluminum alloy, steel, stainless, copper, etc.
Appropriate for putting two different materials together.
Broad contacting area : It is possible to assemble two to four pieces, depending on the product types.
Strong Connection : Hole fill function for the crevice between the base metal and the rivet.
Easy to automate : Offers all phases of automatic functions such as manual, semi-automation, automation and robot.

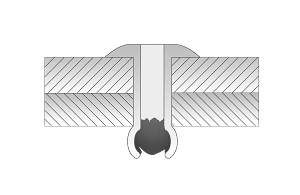

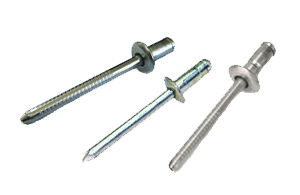

Description
Most general type, install is done by enlarging the end of body with mandrel.
Characteristics
While various materials and sizes are available, the grip range is limited and it is sensitive to hall deference, and mandrel retention strength is relatively insufficient.
Product Specfication
| Size | Body diameter (2.4mm, 3.2mm, 4.0mm, 4.8mm) |
| Body length | adjustable according to the grip range |
| Material | Body-Mandrel(AL-AL, AL-STL, AL-SUS, STL-STL, SUS-STL, SUS-SUS) |
| Head type | dome head, countersunk head, large head |

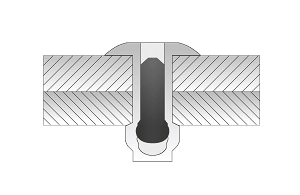

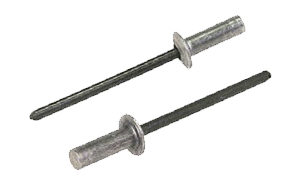

Description
The type with clogged body end.
Characteristics
It is used where water-proof function is required.
Product Specfication
| Size | Body diameter (3.2mm, 4.0mm, 4.8mm) |
| Body length | adjustable according to the grip range |
| Material | Body-Mandrel(AL-AL, AL-STL, AL-SUS, STL-STL, SUS-STL, SUS-SUS) |
| Head type | dome head, countersunk head |
Description

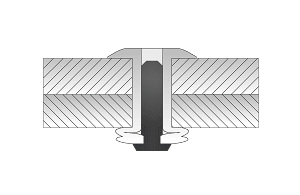

The contacting is done by forming wrinkles in the body.
Characteristics
It provides the large grip range with good filling capacity for all sizes of holes, and sustains the mandrel tightly.
Product Specfication
| Size | Body diameter (3.2Ø, 4.0Ø, 4.8Ø) |
| Body length | adjustable according to the grip range |
| Material | Body-Mandrel (AL-STL, AL-SUS, STL-STL) |
| Head type | dome head, countersunk head, large head |

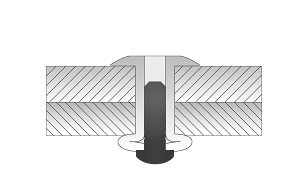

Description

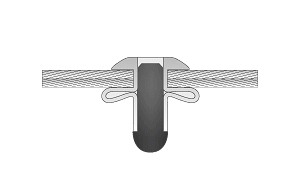

The shape of folded body is similar to that of a flower bud.
Characteristics
It is suitable for thin back base metal since the contacting area with back base metal is relatively broad. It is used where relatively high strength or corrosion resistance is required since the materials are STL and SUS.
Product Specfication
| Size | Body diameter (3.2Ø, 4.0Ø, 4.8Ø) |
| Body length | adjustable according to the grip range |
| Material | Body-Mandrel ( STL-STL, SUS-SUS) |
| Head type | dome head |
Description
The body splits into three branches and folds widely.
Characteristics
It is used in the case that the back base metal is soft material because of composing broad contacting area.
Product Specfication
| Size | Body diameter ( 4.0Ø, 4.8Ø) |
| Body length | adjustable according to the grip range |
| Material | Body-Mandrel (AL-AL) |
| Head type | dome head |
