Description

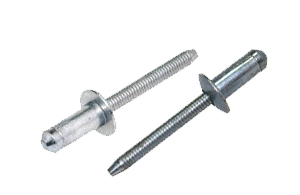

Among the blind rivets, it is the type which has large size and endures high strength, and called structural (blind) rivet since it is largely used for structures. It is suitable for fastening steel structures such as vehicles, special equipment vehicles, containers and distributing boards.
Install Procedure

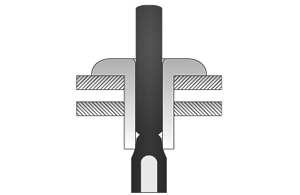

Insert the rivet into tbe base metal.

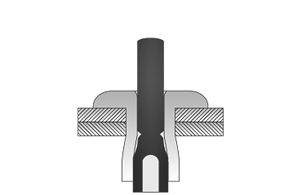

The body starts forming as the tool pulls the mandrel.

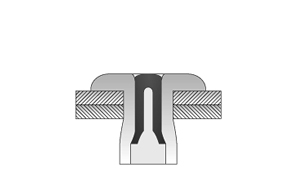

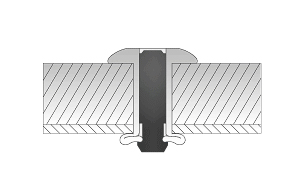

The body gets settled completed into the base metal, and the mandrel gets cut off leaving only the part inside the body.
Characteristics
It is easy to work : Unskillful workers can use it easily.
It is easy to inspect : Naked eyes inspection is possible.
Provides large contacting area : Can hold 2-4 panels depending on the type.
Provides large contacting area : Can hold 2-4 panels depending on the type.
It is easy to automate : Various automated systems are available.
It is strong : It is strong against vibration, impact and static load, etc.

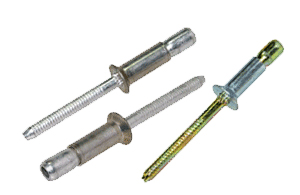

Description

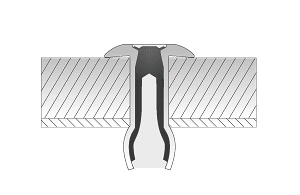

Install is done by enlarging the whole body with the mandrel.
Characteristics
The grip range is very large, and it is suitable for the part where high strength and vibration resistance are required.
Product Specfication
| Size | Body diameter (4.8mm, 6.4mm) |
| Body length | adjustable according to the grip range |
| Material | Body-Mandrel(AL-AL, STL-STL, SUS-SUS) |
| Head type | dome head, countersunk head |
Description

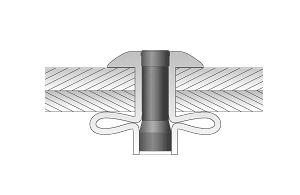

The shape of folded body is similar to that of a flower bud.
Characteristics
It is used where high shearing force is required, and it is suitable for thin base metal since the contacting area is relatively broad.
Product Specfication
| Size | Body diameter (6.4mm) |
| Body length | adjustable according to the grip range |
| Material | Body-Mandrel(AL-AL, STL-STL) |
| Head type | dome head |

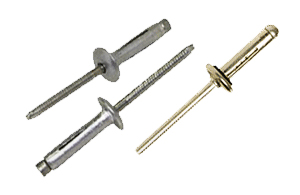

Description
Largely folded type with the body torn in three branches.
Characteristics
It is used with soft back base metal and high strength is required.
Product Specfication
| Size | Body diameter (4.8mm, 6.4mm) |
| Body length | adjustable according to the grip range |
| Material | Body-Mandrel(AL-AL) |
| Head type | dome head |
