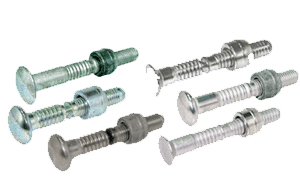

Description
It is a fastener designed for uses in structures where intensive tightness is required such as a railway bridge or structures, and is strong against vibrations or unfastening.
Install Procedure

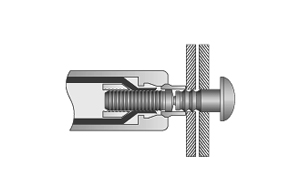

Insert the pin into the base metal and the collar into the pin from opposite side.

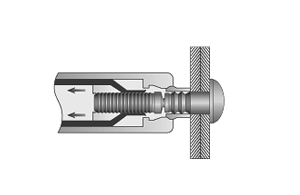

Pull the pin with a tool, and the collar begins to be pressed by anvil.

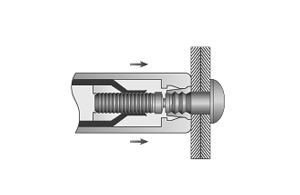

Collar becomes compulsory fitting and pin is to be cut.
Characteristics
The tightness is mighty.
The abilities for shearing, tensile, vibration and tightness are excellent.
The work is easy and swift.
The naked eyes inspection is easy.

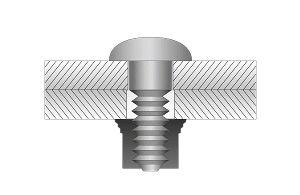

Description
Installed by fitting the collar into the groove compulsorily, and the collar can be removed later.
Characteristics
It is applicable to the large structure of large strength according to the scale of large size. However, the grip range is relatively small due to the existence of cutting point.
Product Specfication
| Size | Pin diameter (4.8mm, 6.4mm, 8mm, 9.6mm) |
| Body length | adjustable according to the grip range |
| Material | AL, STL, SUS |
| Head type | Brazier, Truss, Countersunk |

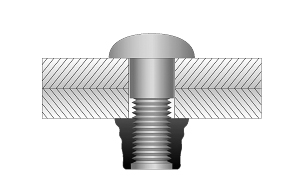

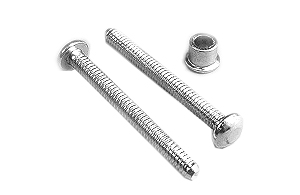

Description
Installed by fitting the collar into groove compulsorily, and the collar can be removed later.
Characteristics
The grip range is extensively broad since cutting point does not exist.
Product Specfication
| Size | Pin diameter (4.8mm, 6.4mm) |
| Material | STL,SUS,Brass |
| Material | Knurled Platform, Astroid Platform, Serration Shank |
