Description
Used to make taps on thin plates or pipes, it is installed easily with hand tools as the nut is used like a blind rivet.

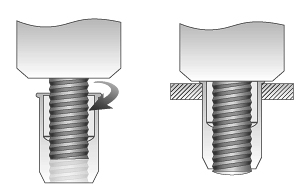

Install Procedure
Push the blind nut to insert with right rotation.
Insert into the base metal.

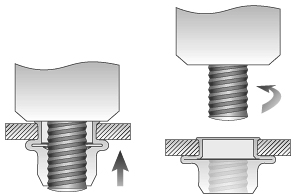

Pull the trigger to fold the body to install and It is pulled out automatically with reverse rotation.
Characteristics
Press the nut on thin plates.
Everybody can conduct the work since it is a very easy.
Installed from one direction : It is suitable for pipes.
Welding nuts or burning taps are not required for installation.
Easy to automate to meet each field condition.

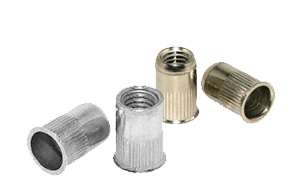

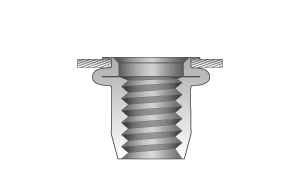

Description
Round shaped body with various materials and sizes.
Characteristics
It prevents the unnecessary rotation with grooves in the body.
Product Specfication
| Size | Body diameter (M3~M10) |
| Body length | adjustable according to the thickness of base metal |
| Material | STL, SUS, AL |
| Flange type | Small Flange, Large Flange |

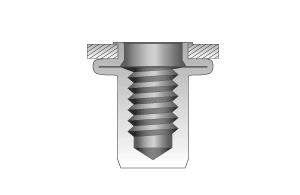

Description

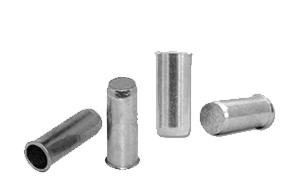

The type with clogged body ends.
Characteristics
It is used where water-proof function is required.
Product Specfication
| Size | Body diameter (M4~M8) |
| Material | STL, SUS, AL |
| Flange type | Small Flange, Large Flange |

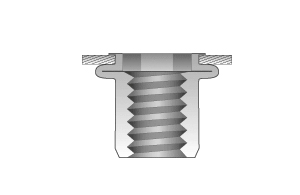

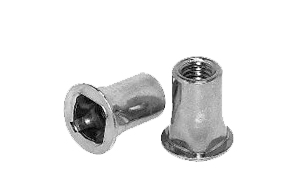

Description

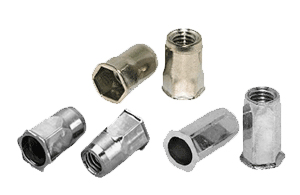

The shape of body is a hexagon.
Characteristics
It is used where more torque is required compared to the round shaped type.
Product Specfication
| Size | Body diameter (M4~M12) |
| Body length | adjustable according to the thickness of base metal |
| Material | STL, SUS, AL |
| Flange type | Small Flange, Large Flange |

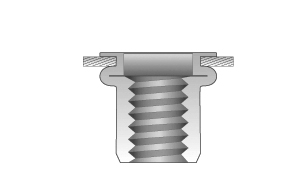

Description
The shape of body is a rectangle.
Characteristics
It is used where more torque is required compared to the hexagon type.
Product Specfication
| Size | Body diameter (M5~M8) |
| Body length | adjustable according to the thickness of base metal |
| Material | STL |
| Flange type | Large Flange |
