Description
In order to improve efficiency when working with blind rivets, which needed to be inserted one at a time, this rivets can be inserted into the tools by the tens at a time.

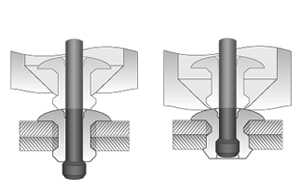

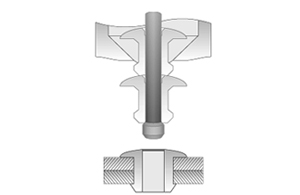

Install Procedure
(Insert tens of rivets into the tool, using the mandrel.) Insert the rivet into the base metal.
Initiate enlarging the body by pulling a mandrel with a tool.
Install is completed by penetrating the body by a mandrel, and then rivets are loaded automatically.
Characteristics
The work performance is swift : Compared to the single shot rivets, it is three to five times faster.
It is easy to automate.
Single material is used : It is effective for corrosion resistance.

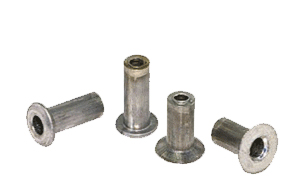

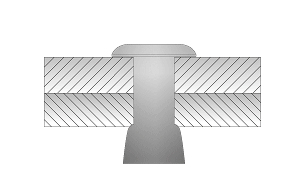

Description
Used as the first rivet in the speed rivet, its inner diameter is inclined.
Characteristics
It is suitable for soft material or light base steel because of little impact on the base steel.
Product Specfication
| Size | Body diameter (2.4mm, 3.2mm, 4.0mm, 4.8mm,6.4mm) |
| Body length | adjustable according to the grip range |
| Material | AL, STL |
| Head type | dome head, countersunk head |

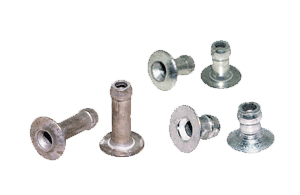

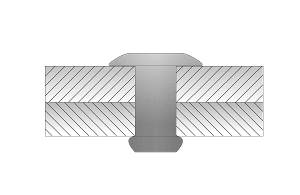

Description
dome head, countersunk head
Characteristics
The excellent performance for inserting and superior ability for tightening.
Product Specfication
| Size | Body diameter (2.4mm, 3.2mm, 4.0mm, 4.8mm) |
| Body length | adjustable according to the grip range |
| Material | AL, STL SUS, BRASS |
| Head type | dome head, countersunk head |

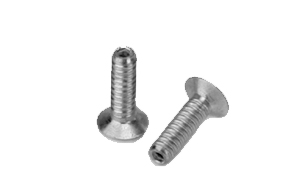

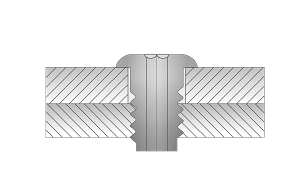

Description
The type with a screw thread in the body.
Characteristics
Re-work is available as with a screw.
Product Specfication
| Size | Body diameter (2.8mm, 3.0mm, 3.5mm, 4.0mm,4.8mm, 6.0mm) |
| Body length | adjustable according to the grip range |
| Material | STL |
| Head type | dome head |
