Assembly Fastening Systems

InYourLife

Leading the Fastening Systems of Korea, The products from AFS are always with you!

Clinching Products

  • Clinching Products

    Description

    Installed by pressing in bolt and nut, it has improved work performance and cost reduction greatly compared to the existing work methods dependent on welding.

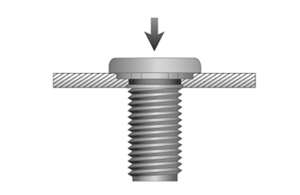

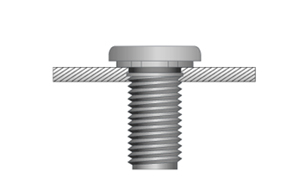

    Install Procedure

    Place the base metal on the stand and insert the press bolt into the hole.
    If the pin presses the press bolt, the base metal begins to be inserted into the hole of press bolt.

    Characteristics

    Unlike welding, naked eyes inspection is possible.
    Unlike welding, heat deformation does not exist.
    It is particularly strong against dismantling load and distorting load.
    Even unskillful workers can conduct since the work is easy to be done.

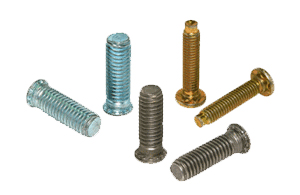

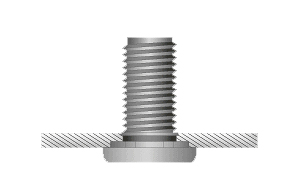

CLINCHING BOLT
  • Description

    The base metal is moved and inserted into the platform by imposing strength.

    Characteristics

    It maintains stable coupling strength compared to welding method, and deformation of the base metal does not happen.

    Product Specfication

    Size M2 - M12
    Body length as required
    Material STL, SUS
    Head type Flush Head, Thick Head
    Platform type Knurled Platfom, Astroid Platform, Serration Shank

    TECHNICAL DATA View

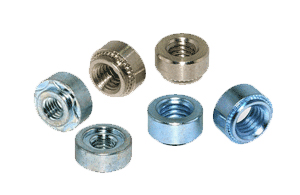

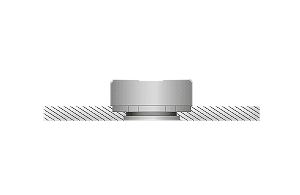

CLINCHING NUT
  • Description

    The base metal is moved and inserted into the platform by imposing strength.

    Characteristics

    It maintains stable coupling strength comparing with welding method, and deformation of the base metal does not happen.

    Product Specfication

    Size M2 - M12
    Material Steel, ST/Steel, Brass
    Platform type Knurled Platfom, Astroid Platform, Serration Shank

    TECHNICAL DATA View

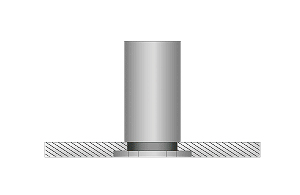

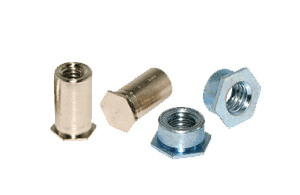

STAND-OFF
  • Description

    The base metal is moved and inserted into the platform by imposing strength.

    Characteristics

    Maintains the gap between two base metals, and used to lift PCB electric board from panel.

    Product Specfication

    Size M2.5 - M5
    Material STL, SUS
    Body type Through, Block
    Platform type Hexa Platfom, Knurled Platform, Serration Shank

    TECHNICAL DATA View
